Metallic Expansion Bellows Joint

Metallic Expansion joint is a device containing one or more metal bellows used to absorb movements in the system related to axial expansion/ contraction, lateral movement, torsional movement, any combination of tri-axial dimensional changes in system, thereby controlling the stress intensities in the system within acceptable limits. This could apply to any piping system, heat exchangers, serve as pulsation dampeners, to accommodate misalignments and flexible hose system.

All types of Metallic Expansion Joint / Metallic Expansion Bellows as per customer specific requirement.

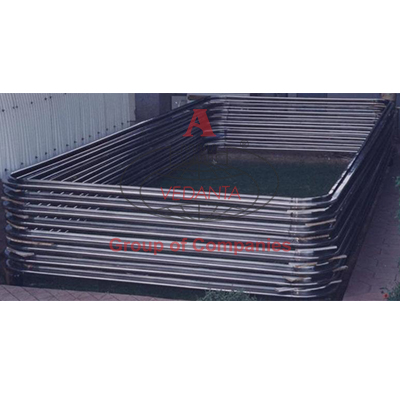

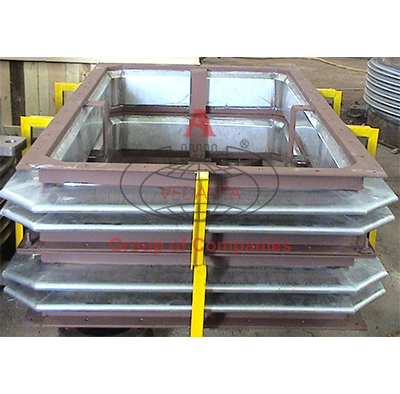

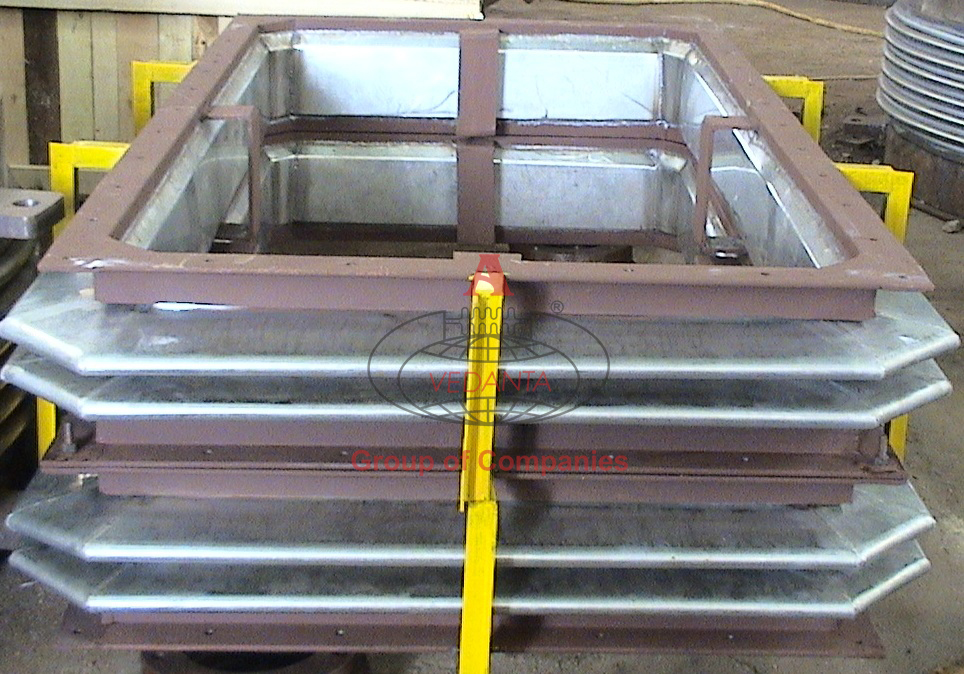

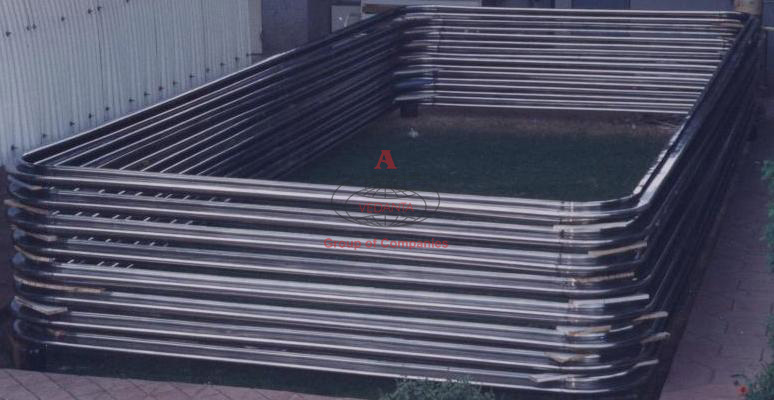

Our product range includes 80 mm NB to 5000 mm NB for circular bellows and upto 9000 mm x 5000 mm rectangular bellows.

Design and Engineering of metallic bellows as per EJMA code and ASME Code requirements. Under special conditions FEA analysis can be carried out.

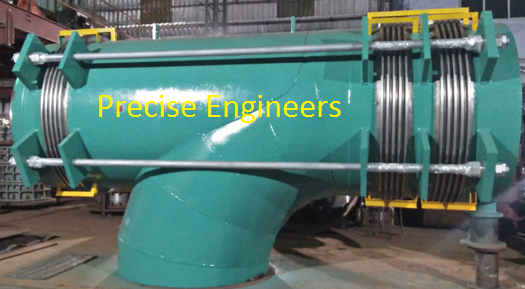

Types of Expansion Joints: Single Expansion Joint, Universal Expansion Joint, Tied Lateral Expansion Joint, Hinged Expansion Joint, Gimbal Expansion Joint, Pressure Balanced Elbow Expansion Joint, Inline Pressure Balanced Expansion Joint, Externally Pressurized Expansion Joint.

Material of construction: Various grades of Stainless Steel like SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 310 and Nickel Alloys like Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Hastelloy and Duplex materials etc.
